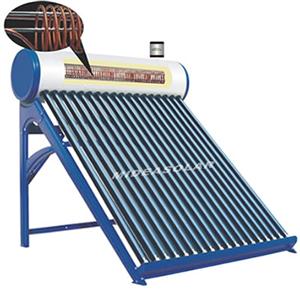

CCBP/C collector


Introduction:
As the leading manufacturer of integrated pressurized solar system, Mideasolar is not only leading in manufacturing completely vacuum tube un-pressurized solar water system, but also leading in manufacturing completely vacuum tube integrated pressurized solar system, including systems with instant heat exchanging technology and systems with storage heat exchanging technology. These systems are suitable for the area with hard and saline water and are used for domestic as well as industrial application such as hotels, hospitals, dairies, hostels, nursing homes, feed water for boilers, process industries etc.

Products feature:
☉      Outer tank material: aluminum zinc alloy steel
☉      Inner tank material: stainless steel SUS304-2B
☉      Support material: aluminum zinc alloy steel structure
☉      Tank/support/side cover color: option (blue/red/golden)
☉      Tank insulation: puf 55 mm
☉      Vacuum tube mode: Ф58-1800,Ф58-2000
☉      Vacuum tube number: 24/30
☉      Interface: option (as need)

Advantages
·         Easy to install. Integrated module, easy to install.
·         More efficiency. The heat exchange can be finished in the seconds.
·         Easy to use. Hot water with pressure, very easy to use.
·         More comfortable. Host will feel comfortable with pressure hot water.
·         More reliability. They "just work", minimal maintenance.

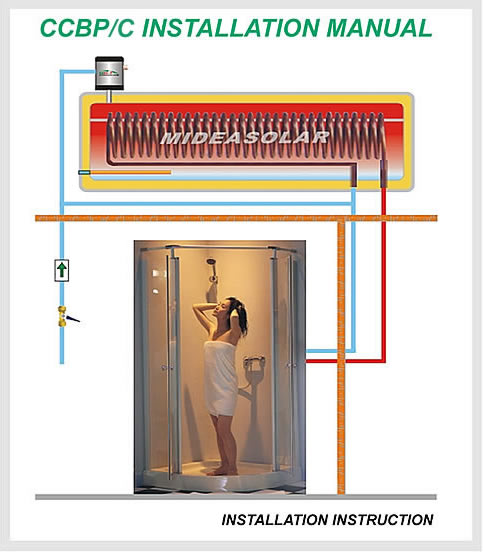

Compatible with existing water heater.
This series can be connected directly to your present water-heater thus converting it to a solar-assisted water-heater.

A

CCBP/C-NN/460-1800/58  (NN=24, 30)

Outer Tank

Inner Tank

Exchanger

Vacuum Tube

Support

Material

Diameter

Thickness

Material

Diameter

Thickness

Material

Diameter

Length

O.D/I.D

L

Alloy SS

460 mm

0.4 mm

304 2B SS

360 mm

0.5 mm

Copper

12*1mm

32 m

58/47 mm

1800 mm

Alloy SS

























B

CCBP/C-NN/500-2000/58  (NN=24, 30)

Outer Tank

Inner Tank

Exchanger

Vacuum Tube

Support

Material

Diameter

Thickness

Material

Diameter

Thickness

Material

Diameter

Length

O.D/I.D

L

Alloy SS

500 mm

0.4 mm

304 2B SS

380 mm

0.5 mm

Copper

12*1mm

32 m

58/47 mm

2000 mm

Alloy SS
