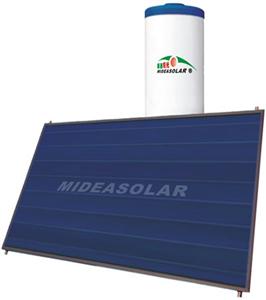

Introduction:
With the high technology of the separated pressurized solar system, Mideasolar company is famous in the solar scopes not only in China but also in oversea. The SSM/PBM/TCM series are the newly and latest improving quality type and tested to suitable for the coldest area, such as in the north of Europe, which we have exported to Norway, Netherlands, UK, Poland, etc. It is also widely used in the other western developed countries for domestic and engineering. These systems are suitable for the area with hard and saline water. It is easy to be utilized and welcomed by the customers not only old but also young.

Advantages
·Easy to install. The SMM/PBM/TCM series module comes easy to install by our part, such as tank, work station and complete module.
·More efficiency. The hot water in the pane will be transferred to the storage tank immediately through work station circulation.
·Easy to use. Hot water with pressure, it will comes hot water immediately when water cock opened.
·More comfortable. Act as the best function, who will realize what the real living life under the hot water bath.
·Proven reliability. Can operate for years without owner intervention or maintenance. They "just work", minimal maintenance.
·Compatible with existing water heater. The SMM/PBM/TCM series can be connected directly to your present water-heater thus converting it to a solar-assisted water-heater.
·Overheat protection. Through protection function, the high temperature hot water by-pass to protect the heat collecting module.
·Anti-freeze protection. No need to periodically flush and fill the system with expensive, new anti-freeze fluids. Through setup circulation, the heat collecting module will be protected in the coldest night.

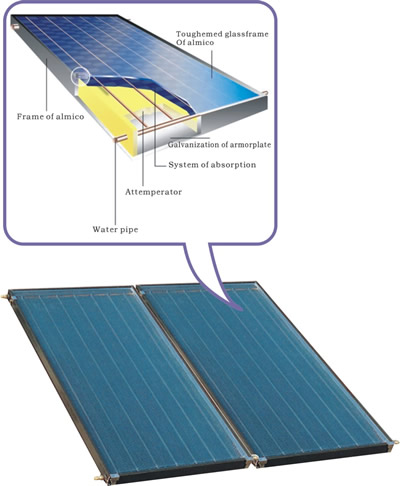

Product feature:
1. Flat panel shape size as 1000 × 2000 × 70.
2. Heat absorbing body
    A, It is made from 8 heat collecting slice, the width of each as 12.5 cm, thickness as 0.16 mm.
    B, One small heat collecting copper tube is welded at each heat collecting slice. The specification is Ф 10 × 0.5; Two heat collecting copper pipe are at top side and bottom side, The specification isФ 25 × 0.6.
   C, Heat collecting slice surface draw layer is coated with nickel and electroplates the black chrome with the soak type.
   D, The working pressure is 1.0 Mpa.
   E, The absorb factorα=0.95, but reflector factorε=0.10~0.15.
3. Outline: the material is bronze-colored aluminum.
4. Rubber mat: Two sides of the glass adopt EVA bubble rubber.
5. The glass: it is adopted white glass. The thickness 4.5 mm, the glass iron content should be lower than 0.13%, diaphanous rate of the light can reach 85%.
6. Flat panel preservation: it is covered as a yellow glass fiber, the thickness is 20mm. On it cover the aluminum layer
7. Flat panel scale-board: Adoption the galvanized iron, the thickness is 0.25mm.
8. Collecting area: 2M2, and weight: 40kg/unit.
