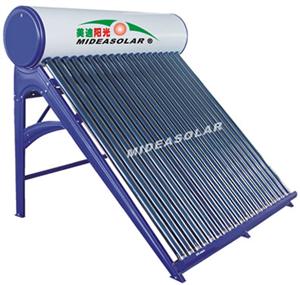

CCB-A collector |
|
|
| |
|
Introduction:
They are integrated un-pressurized solar system, which are not only easy to install but also easy to use. With the economic and reasonable price, it is widely used in the countryside for domestic in the developing country, and welcomed by the people from the all over the world.
Products feature:
☉ Outer tank material: aluminum zinc alloy steel
☉ Inner tank material: stainless steel SUS304-2B
☉ Support material: aluminum zinc alloy steel structure
☉ Tank/support/side cover color: option (blue/red/golden)
☉ Tank insulation: puf 55 mm
☉ Vacuum tube mode: Ф47-1500; Ф58-1800; Ф58-2000
☉ Vacuum tube number: 15/18/20/24/30
☉ Interface: option (as need)
|
A |
CCB-NN/420-1500/47 (NN=15, 18, 20, 24, 30) |
|
Outer Tank |
Inner Tank |
Insulation |
Vacuum Tube |
Support |
|
Material |
Diameter |
Thickness |
Material |
Diameter |
Thickness |
Polyurethane |
O.D/I.D |
L |
|
Alloy SS |
420 mm |
0.4 mm |
304 2B SS |
315 mm |
0.5 mm |
53.5 mm |
47/37 mm |
1500 mm |
Alloy SS |
|
|
|
B |
CCB-NN/460-1800/58 (NN=15, 18, 20, 24, 30) |
|
Outer Tank |
Inner Tank |
Insulation |
Vacuum Tube |
Support |
|
Material |
Diameter |
Thickness |
Material |
Diameter |
Thickness |
Polyurethane |
O.D/I.D |
L |
|
Alloy SS |
460 mm |
0.4 mm |
304 2B SS |
360 mm |
0.5 mm |
50 mm |
58/47 mm |
1800 mm |
Alloy SS |
|
|
|
|
|
|
|
|
|
|
|
|
C |
CCB-NN/500-2000/58 (NN=15, 18, 20, 24, 30) |
|
Outer Tank |
Inner Tank |
Insulation |
Vacuum Tube |
Support |
|
Material |
Diameter |
Thickness |
Material |
Diameter |
Thickness |
Polyurethane |
O.D/I.D |
L |
|
Alloy SS |
500 mm |
0.4 mm |
304 2B SS |
380 mm |
0.5 mm |
60 mm |
58/47 mm |
2000 mm |
Alloy SS |
|
|
