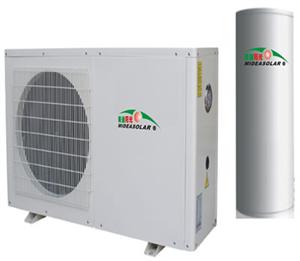

KQY collector |
|
|
| |
|
Performance characteristic:
Completely isolate water and power, safe and reliable use small main unit, convenient for installing, water tank can be equipped flexibly, meet the requirements of different clients.
Apply built-in heat exchanger, water pipe isn’t installed with copper pipe, the main unit and water tank is only required to be connected with copper pipe, compulsive heat exchange efficiency, better stability and longer service life.
Apply microcomputer controller, users can freely set according to the actual requirements.
It is compatible with solar energy, save energy; prevent hot water shortage in rainy and shade day, and other normal use of hot water.
Applicable scope:
Foreign-style; villa chamber; and beauty salon.
Technical parameter:
|
Related heating output |
3.3 |
|
Input power |
0.8 |
|
Voltage |
220V/50HZ |
|
Rated Output Water Temperature |
55℃ |
|
Max Output Water Temperature |
60℃ |
|
Rated output water quantity |
65 |
|
Compressor |
Form |
Rotation Type |
|
Quantity |
1 |
|
Brand |
Panasonic |
|
Heat Exchanger |
Form |
Effective Spiral Double Pipe Heat Exchanger |
|
Circulation Eater Pipe Diameter |
DN20 |
|
Pressure drop |
<50Kpa |
|
Draught |
Form |
Internal Rotor Motor Plastic Leaves |
|
Power(W) |
20 |
|
Weight |
40 |
|
Control Mode |
Microcomputer central processor (linear control) |
|
Protection Function |
High pressure protection. Low pressure protection, phase failure, reversed phase, water current switch, anti-freeze protection | |
|
