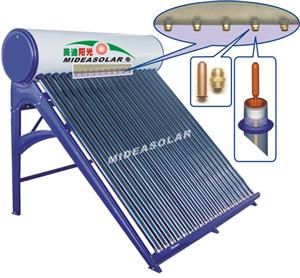

CCBP/H collector


Introduction:
CCBP/H is a Newest technology product, which use heat pipe in the vacuum tube and insert directly to the inner tank. It means this solution will possess higher efficiency when heat transferred by the media. This systems is suitable for the area with hard and saline water and is used for domestic as well as industrial application such as hotels, hospitals, dairies, hostels, nursing homes, feed water for boilers, process industries etc.

Products feature:
 Outer tank material: aluminum zinc alloy steel
 Inner tank material: stainless steel SUS304-2B
 Support material: aluminum zinc alloy steel structure
 Tank/support/side cover color: option (blue/red/golden)
 Tank insulation: puf 55 mm
 Vacuum tube mode: Ф47-1500;Ф58-1800
 Vacuum tube number: 15/18/20/24/30
 Interface: option (as need)

Advantages
• Easy to install. Integrated module, easy to install.
• More efficiency. The heat exchange can be finished in the seconds.
• Easy to use. Hot water with pressure, very easy to use.
• More comfortable. Host will feel comfortable with pressure hot water.
• More reliability. They "just work", minimal maintenance.

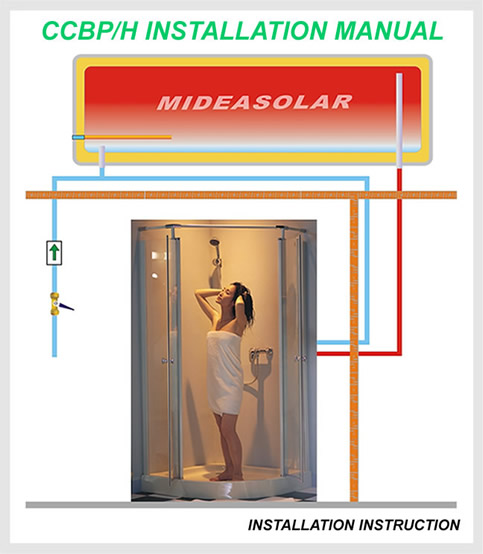

Compatible with existing water heater
This series can be connected directly to your present water-heater thus converting it to a solar-assisted water-heater.

A

CCBP/H-NN/480-1800/58  ( N=12, 15, 18, 24, 30, 36)

Outer Tank

Inner Tank

Vacuum Tube

Exchanger

Support

Material

Diameter

Thickness

Material

Diameter

Thickness

O.D

I. D

L

Material

Alloy SS

480 mm

0.4 mm

304 2B SS

370mm

1.2 mm

58 mm

47 mm

1800 mm

Heat pipe

Alloy SS
