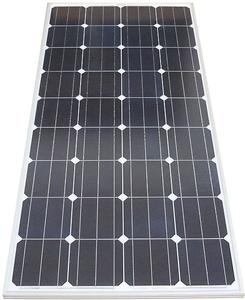

PV panel |
|
|
| |
|
|
Monocrystalline |
|
|
|
|
|
|
|
|
|
|
|
Model |
Series |
Cell Size |
Dimensions |
Weight |
Pmax |
Imp |
Vmp |
Isc |
Voc |
Max Voltage |
|
(mm) |
(mm) |
(kg) |
(W) |
(A) |
(V) |
(A) |
(V) |
(V) |
|
STP260S-24/Vb |
156 |
156x156 |
1956x992x50 |
27 |
260 |
7.43 |
35 |
8.04 |
44.3 |
1000 |
|
STP220S |
156 |
156x156 |
1956x992x50 |
27 |
220 |
6.29 |
35 |
7.45 |
44.3 |
1000 |
|
STP200S-18/Ub |
156 |
156x156 |
1482x992x35 |
16.8 |
200 |
7.63 |
26.2 |
8.1 |
33.6 |
1000 |
|
STP175S-24/Ac |
125 |
125x125 |
1580x808x35 |
15.5 |
175 |
4.9 |
35.8 |
5.23 |
44.7 |
600 |
|
STP170S-24/Ab-1 |
125 |
125x125 |
1580x808x35 |
15.5 |
170 |
4.83 |
35.2 |
5.14 |
43.8 |
1000 |
|
STP130S-12/Tb |
156 |
156x156 |
1482x676x35 |
12 |
130 |
7.43 |
17.5 |
8.04 |
22.2 |
1000 |
|
STP085S-12/Bb |
125 |
125x125 |
1195x541x30 |
8 |
85 |
4.8 |
17.8 |
5.15 |
22.2 |
715 |
|
STP085S-12/Bb-1 |
125 |
125x125 |
1195x541x30 |
8 |
85 |
4.83 |
17.6 |
5.14 |
21.9 |
600 |
|
STP060S-12/Sb |
156 |
156x78 |
771x665x30 |
6.2 |
60 |
3.41 |
17.6 |
3.84 |
22 |
715 |
|
STP040S-12/Rb |
156 |
156x52 |
537x665x30 |
4.5 |
40 |
2.3 |
17.4 |
2.58 |
21.8 |
715 |
|
STP030S-12/Lb |
156 |
156x39 |
426x680x18 |
3.2 |
30 |
1.72 |
17.4 |
1.92 |
21.8 |
715 |
|
STP020S-12/Cb |
125 |
125x31.25 |
656x306x18 |
2.5 |
20 |
1.14 |
17.6 |
1.26 |
21.7 |
715 |
|
STP010S-12/Kb |
156 |
78x26 |
310x368x18 |
1.5 |
10 |
0.57 |
17.6 |
0.64 |
21.8 |
715 |
|
STP005S-12/Db |
125 |
62.5x15.62 |
216x306x18 |
0.8 |
5 |
0.29 |
17.4 |
0.32 |
21.6 |
715 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Polycrystalline |
|
|
|
|
|
|
|
|
|
|
|
Model |
Series |
Cell Size |
Dimensions |
Weight |
Pmax |
Imp |
Vmp |
Isc |
Voc |
Max Voltage |
|
(mm) |
(mm) |
(kg) |
(W) |
(A) |
(V) |
(A) |
(V) |
(V) |
|
STP260-24/Vb |
156 |
156x156 |
1956x992x50 |
27 |
260 |
7.47 |
34.8 |
8.09 |
44 |
1000 |
|
STP220 |
156 |
156x156 |
1956x992x50 |
27 |
220 |
6.29 |
35 |
7.45 |
44.3 |
1000 |
|
STP200-18/Ub |
156 |
156x156 |
1482x992x35 |
16.8 |
200 |
7.63 |
26.2 |
8.12 |
33.4 |
1000 |
|
STP175-24/Ac |
125 |
125x125 |
1580x808x35 |
15.5 |
175 |
4.87 |
35.9 |
5.18 |
44.7 |
1000 |
|
STP170-24/Ab-1 |
125 |
125x125 |
1580x808x35 |
15.5 |
170 |
4.83 |
35.2 |
5.14 |
43.8 |
600 |
|
STP130-12/Tb |
156 |
156x156 |
1482x676x35 |
12 |
130 |
7.47 |
17.4 |
8.09 |
22 |
1000 |
|
STP085-12/Bb |
125 |
125x125 |
1195x541x30 |
8 |
85 |
4.78 |
17.8 |
5.11 |
22.2 |
715 |
|
STP085-12/Bb-1 |
125 |
125x125 |
1195x541x30 |
8 |
85 |
4.97 |
17.1 |
5.32 |
21.4 |
600 |
|
STP060-12/Sb |
156 |
156x78 |
771x665x30 |
6.2 |
60 |
3.45 |
17.4 |
3.9 |
21.6 |
715 |
|
STP040-12/Rb |
156 |
156x52 |
537x665x30 |
4.5 |
40 |
2.3 |
17.4 |
2.58 |
21.8 |
715 |
|
STP030-12/Lb |
156 |
156x39 |
426x680x18 |
3.2 |
30 |
1.74 |
17.2 |
1.94 |
21.6 |
715 |
|
STP020-12/Cb |
125 |
125x31.25 |
656x306x18 |
2.5 |
20 |
1.14 |
17.6 |
1.26 |
21.7 |
715 |
|
STP010-12/Kb |
156 |
78x26 |
310x368x18 |
1.5 |
10 |
0.57 |
17.4 |
0.65 |
21.6 |
715 |
|
STP005-12/Db |
125 |
62.5x15.62 |
216x306x18 |
0.8 |
5 |
0.29 |
17.4 |
0.32 |
21.6 |
715 |
|
|
